Quick Start

1D Model

import puffin_disk

# Example input values
m_star    = 0.3       # M_sun
r_d       = 100       # AU
sigma_1au = 1000      # g cm^-2
F_FUV     = 1e3       # G_0

# Run PUFFIN
model = puffin_disk.DiskModel1D(m_star, r_d, sigma_1au, F_FUV)

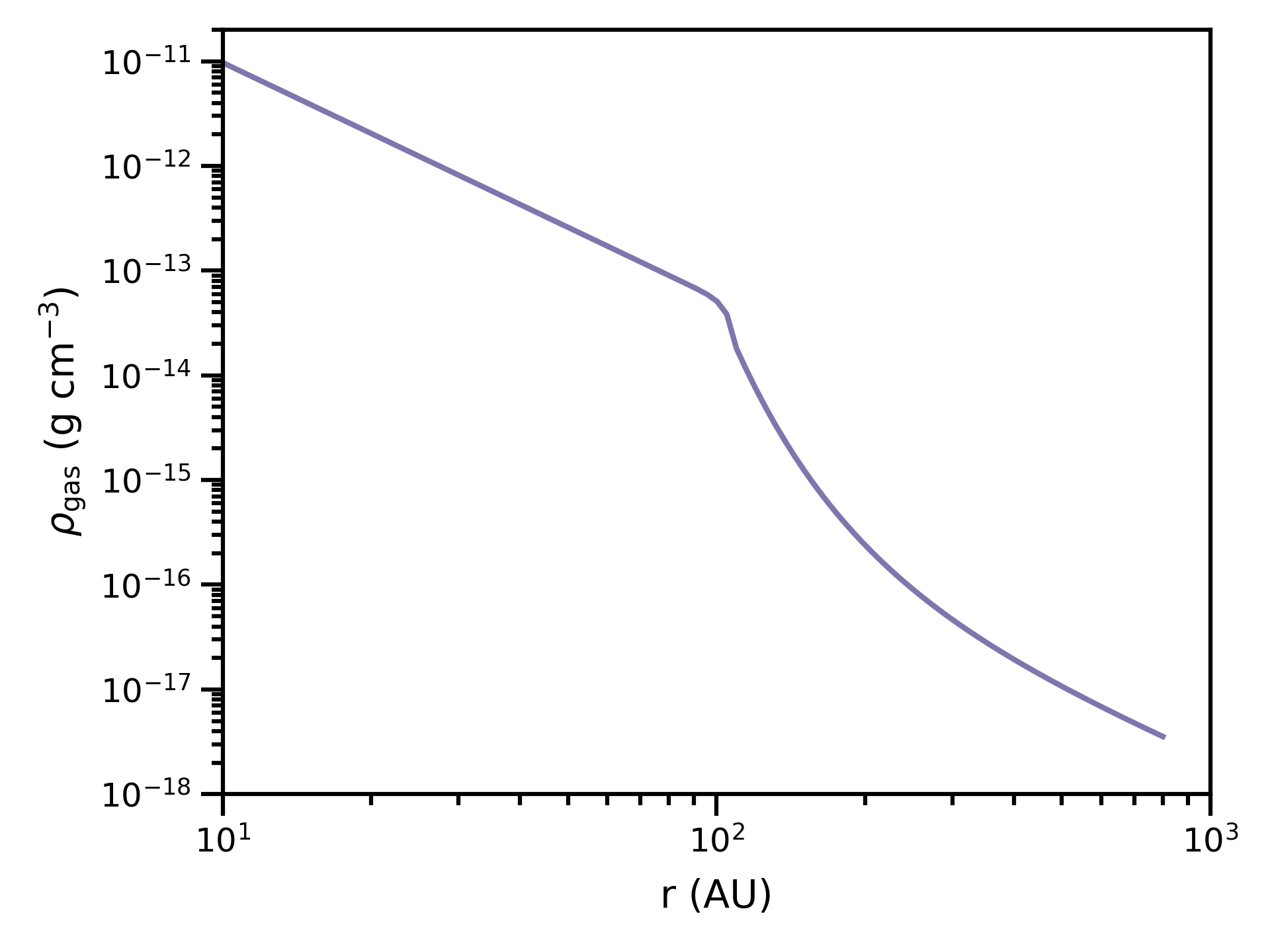

The model returns 1D arrays for radius and density. These can then be plotted:

import matplotlib.pyplot as plt

r_array   = model[0]
rho_array = model[1]

plt.loglog(r_array, rho_array)
plt.show()

2D Model

import puffin_disk

# Example input values
m_star    = 0.3       # M_sun
r_d       = 100       # AU
sigma_1au = 1000      # g cm^-2
F_FUV     = 1e3       # G_0

# Run PUFFIN
model = puffin_disk.DiskModel2D(m_star, r_d, sigma_1au, FFUV_G0, gamma=3.0)

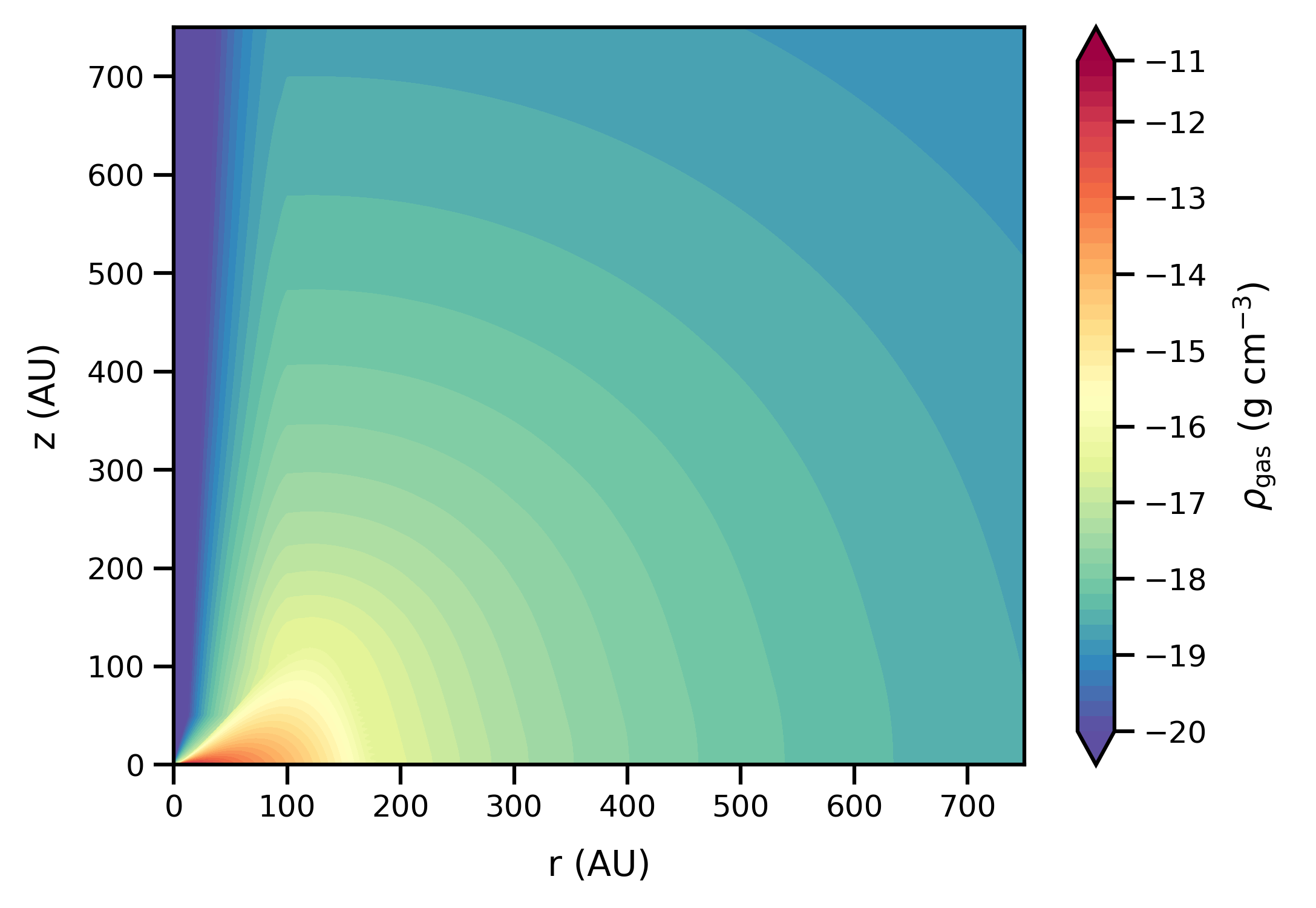

The model returns 1D arrays for radius and height, and a 2D density array. These can then be plotted:

import matplotlib.pyplot as plt

r_array   = model[0]
z_array   = model[1]
rho_array = model[2]

plt.contourf(r_array, z_array, np.log10(rho_array), cmap='Spectral_r', levels=np.arange(-20, -11, 0.2), extend='both')
plt.show()

Tweaking the Models

Both the 1D and 2D PUFFIN models include several optional parameters that allow you to customize the numerical grid and physical behavior. These parameters are passed directly to the DiskModel1D and DiskModel2D constructors and can be directly adjusted.

The available options are summarized below.

Parameter	Type	Description
n_points	int, optional	Number of grid points used in the radial (and vertical, for 2D) directions. Default is 1000. Higher resolution (≥1000) is recommended for accurate hydrostatic equilibrium solutions.
gridsize	float, optional	Outer radius of the computational grid in AU. Default is min(8 * r_d, 800).
m_dot	float, optional	Mass-loss rate in M☉ yr⁻¹. If None, the value is interpolated from the FRIED grid. For 2D models, a factor of 2 is applied (see ‘Physical Model’ documentation).
gamma	float, optional	Exponential cutoff parameter for the surface density profile. If None, this is calculated using an internal scaling relation.
p	float, optional	Power-law index controlling the disk-wind transition associated with the disk radius (r_d). Default is 0.2.
q	float, optional	Power-law index controlling the disk-wind transition associated with the external FUV field (F_FUV). Default is 0.4.
k	float, optional	Parameter controlling steepness of vertical temperature gradient. Default is 1.75.
N_ITER	int, optional	Number of hydrostatic equilibrium iterations. Default is 20. Increasing this may improve convergence at the cost of runtime.
verbose	bool	Turn on/off messages to the console. Default is TRUE.

In most cases, the default settings provide a good balance between accuracy and performance. Advanced users may wish to increase resolution or iteration count when exploring detailed vertical structure or testing convergence.
